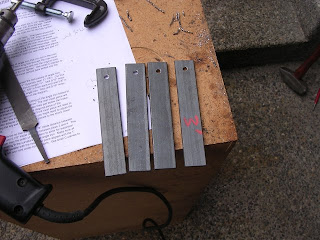

Here are the four 1" x 3/16" x 5.5" bars that will be mounted to the shock towers
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjG_agSopHKvh_w9_eDBqK7QlSKLKz-LLRPBY0KgdAxiT45NKuVJUiFSE9KNs-BqIwUYA19f-OqHbzBEoH9L0tcCpz83tHRoRg3sqZgT9D1jMMgRZFRFvMJtXEo2Q5GBqnYN-FaZP1r3ipK/s320/firewall_rack_2.jpg)
With the bars mounted to the shock towers, I cut the left and right angle iron supports. I bolted the rear end through the 2 3/4" piece of 1" galvanized pipe and used a clamp to hold the front to the bars on the shock towers.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiNdOWXnLGtxC08HkNqyNq8XtABCdkxgWh9WFxujkbiSsvFI55JLKiY0Yd9KY6eaqP14sSmH5rNEi1gU72-zi5yMZmHdv_TqOVjdTrQanImmL_AtWf0RoY_VnPYI9m6SqwYNiOeyxsKYiHV/s320/firewall_rack_3.jpg)
Here's a similar view of the supporting angle-iron, but on the driver-side. Note that I had to carve out a much larger notch out of the rear motor mount to accomodate the supporting angle iron. I also had to cut an angled piece off the back of the supporting angle iron to not interfere with the brake lines under the brake-fluid reservoir.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjioeIFv9JUb1OtibHNs2Mv_6y2Zvvfdg5RZxAq4DXuBI4Qe0ESOOyDCSoZNIJtWFFJfOKfLxdC1q0e5O-RvKn3mn3u6ZY3lZ3d2f0fJrMs4V6AvuSQV0evQk2fvneeUH1jE-drQgE0HJJv/s320/firewall_rack_4.jpg)
After measuring the distance between the two side pieces, I cut four horizontal pieces of angle iron, measured the proper distance between them to fit the Lifeline batteries and clamped them in place.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj8Txx-rXhOGUqpJgX2javPj6kJubvGNle65K9LZgMMftg6WRHL1ByODs9lDbKJsilI0bj2DQEPGhguo5OwKyZuFKVNI0ZQTYoh3Fp5JOuO098e-A0xvUw0xtF7Gae5CC1AMfch5KXnaKsG/s320/firewall_rack_5.jpg)
Same structure but on the passenger side. The rear-most horizontal bar has a curved piece cut out of it to avoid touching the brake lines. With all pieces clamped in place, I could now draw through the holes in the horizontal bars to the underlying metal to properly drill bolt holes.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjVSbjiYQ_hQ7keZ7TKtrqIzRsit4qSPjMX-2o2XBPlmYeZguw3XqiLEUp6XyADVQfHjNhM8LWtMiFJORRYpTBWJASYA8B-F4aO__v7FjGoHz7DGztbAWmFeJYQ8mt1wqvM9JfP-i2zXSDE/s320/firewall_rack_6.jpg)
After marking and the holes on the left and right supports as well as the bars mounted to the shock towers, I disassembled the structure, drilled the holes and bolted it back together. With the structure bolted together, I now added the two angle-iron pieces on the right that jut out towards you. These are just clamped in place so I can mark holes on the angle-iron pieces.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhQGXYDRYfz8jw_nVy9fR015SxvbfdExjIb0y0nPM61e2LTMD3Ol6MgUedHX-qFUQ4QOTb32unjab9gjKzd4tom6KoPQA8zVAnXaCttv1l-yamGJGVWSeOCQ0SKyb2QwgbwivW2mxCWqJbP/s320/firewall_rack_7.jpg)

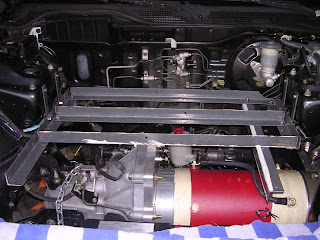

With the marked holes drilled on the rightmost angle-iron supports, I bolted the far right one on. These supports that jut out towards the front of the car will hold a platform for all the electronics.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiA6f6a5XeuJ6Em3Guko3c_-1VYBbl6c-o0PULDiUCJaW3NrmBg6RPZ93EPKcvFWQ1HBZfwN0hK-VUkG1FldXNv_XAPrB6hEhExyywDIQnhP4DBxyXwjUcay7F1yt-jzTbEQfVOjL1EpGI5/s320/firewall_rack_8.jpg)

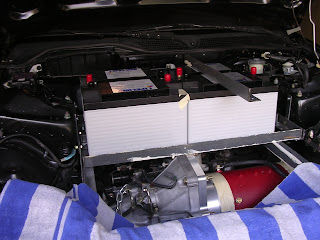

Here's a final test to make sure the batteries fit in and I still have hood clearance. With the batteries in, I was able to close the hood easily without any interference. Yay! It took me awhile to get this solution to work.
Next up: making the hold-downs for the front and firewall battery racks.
