Drafting up the Front and Rear Racks

I spent this evening trying to use Sketchup to capture the design intent of the instructions. Click on the images below to get a larger version.


Here's the current design for the front rack just behind the radiator grille.

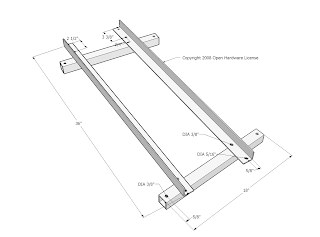

Here's the simpler battery rack for the rear trunk.

The firewall rack is a bit more complex; I'll try to draft that up tomorrow morning.
